Global Status Bar

The Global Status Bar is a full width view across the top of an application — an area commonly reserved for global status, global command and top-level navigation. The Global Status Bar often includes: Application Name, Monitoring Icons, Top Level Navigation and an Emergency Button.

Rules of Thumb

  • Make Monitoring Icons interactive to reveal in-depth information.
  • Make sure that Monitoring Icons use color coding, iconography and labels consistent with the standard design.
  • Include the name of the application.

Appearance and Behavior

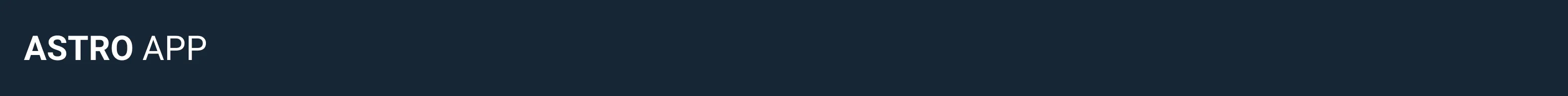

Simplest Global Status Bar - Only include the App Name.
Simplest Global Status Bar - Only include the App Name.
Simple Global Status Bar - App Name and Emergency Off.
Simple Global Status Bar - App Name and Emergency Off.

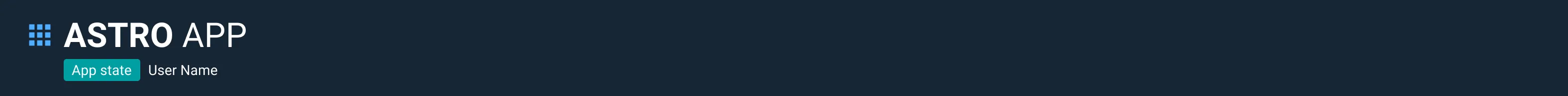

More Complex Global Status Bar - App Name, Status Icons and Emergency Off.
More Complex Global Status Bar - App Name, Status Icons and Emergency Off.

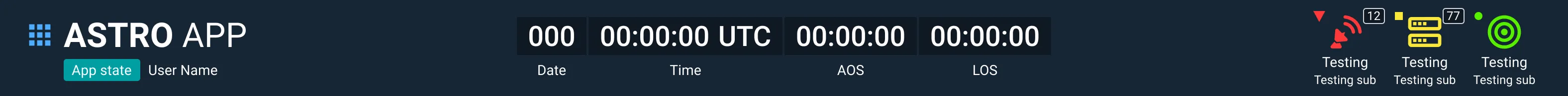

Most Complex Global Status Bar - App Name, Navigation, Monitoring Icons and Emergency Off.
Figure 5.1.1: Most Complex Global Status Bar - App Name, Navigation, Monitoring Icons and Emergency Off.

When using the alternate light theme in Astro, the Global Status Bar and all of the elements it contains still use the default dark theme styling.

Examples

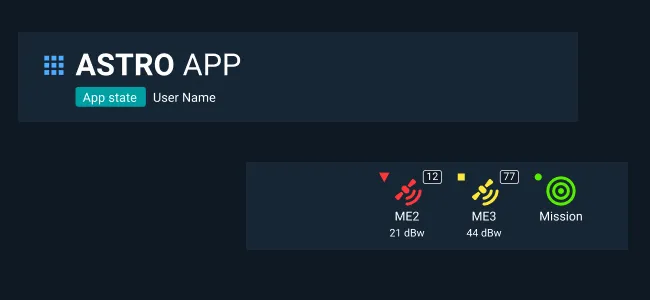

Do: Correctly and consistently utilize the standard elements that comprise the Global Status Bar.
Do: Correctly and consistently utilize the standard elements that comprise the Global Status Bar.

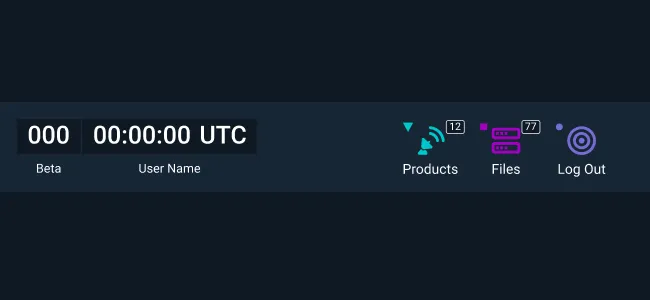

Don’t: Use icons, labels and colors incorrectly.
Don’t: Use icons, labels and colors incorrectly.

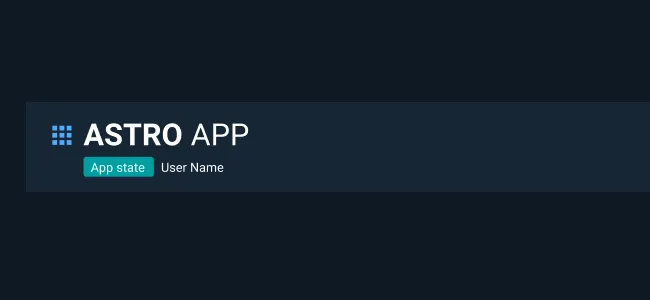

Do: Left justify the application name and Top Level Nav (when utilized). Right justify Icons and Emergency Off (when utilized).
Do: Left justify the application name and Top Level Nav (when utilized). Right justify Icons and Emergency Off (when utilized).

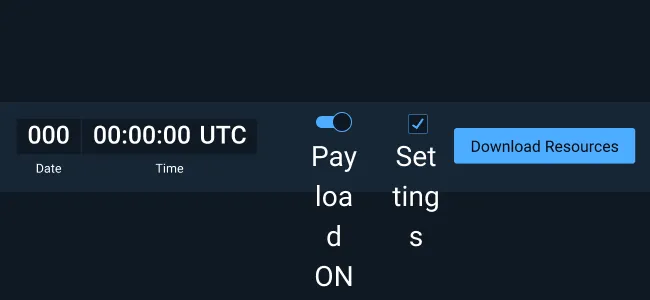

Don’t: Use the Global Status Bar for controls or indications that come and go with different app modes. Reserve it for truly global elements.
Don’t: Use the Global Status Bar for controls or indications that come and go with different app modes. Reserve it for truly global elements.
