Icons and Symbols

Astro includes a library of common Icons, Symbols, and Notification Symbols. Persistent use of these will help ensure users are presented with consistent and meaningful information across applications.

Each of these must be easily identifiable by users and also be immediately distinguishable from each other, eliminating confusion and mistakes.

Astro’s icons have been designed to utilize the Astro Status System.

icons symbols 1

icons symbols 1

Rules of Thumb

  • Make the icons meaningful: Avoid using icons solely for visual interest. Make sure they'll be meaningful to the end user and have a purpose in the UI.
  • Use the proper icon class: Icons are categorized into classes based on their intended use. Do not use an icon from the Utility set where a Monitoring icon should be used. Extending the set with new icons is preferred over scaling existing icons to fit.
  • Follow the guidelines when extending: It's important for the iconography to feel like a family that belongs together in an application. If you choose to extend the set, follow the guidelines.

Astro Icon Classes

Monitoring Icons

These icons represent objects, equipment, and concepts that are being administered or monitored. The purpose of these icons is to easily, concisely, and clearly visually communicate their status to users.

icons monitoring 1

icons monitoring 1

icons monitoring 2

icons monitoring 2

Percentage Monitoring Icons

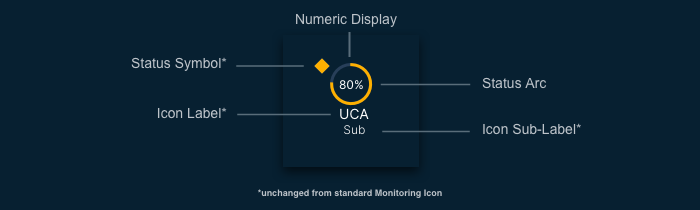

Percentage Monitoring Icons depict a value between 0 and 100 as an arc and a numeric display. Ranges within the arc may be mapped to the standard Astro Status Colors. In this example the range containing 80% is mapped to Serious.

percentage monitoring graphic cms

percentage monitoring graphic cms

Action Icons

Action Icons initiate actions or state changes to objects or processes.

icons action

icons action

Utility Icons

Utility Icons represent access to tools used to modify the settings for a component, object or globally. Utility Icons are also accompanied by a descriptive name.

icons utility

icons utility

Component Icons

A Component Icon is a pictorial representation of an action associated with a screen component (i.e. - popup menu open/close or window expand/contract). The Component Icon graphic provides a guide to the action that will happen to the window component. Component Icon actions are enacted when selected or clicked.

icons component 1

icons component 1

icons 007 component examples

icons 007 component examples

Astro Symbol Classes

Astro Symbols are associated with something being monitored and whose state is being communicated to the user. A user may make a setting change based on an items status, but the Status Symbol will only change if the status of the thing being monitored changes.

Status Symbols

Status Symbols include a shape and color that represent a particular state of an object, tool, concept, or action. An icon that indicates a state will be accompanied with a corresponding Status Color and Status Symbol. For more information see Status System.

icons status symbols 1

icons status symbols 1

icons status symbols 2

icons status symbols 2

icons symbols modems

icons symbols modems

Lock/Unlock

A unique single purpose state indicator to identify whether an object or component is locked/unlocked.

icons lock unlock

icons lock unlock

Notification Symbols

Events that require some user attention, but no immediate response, may be indicated by changes to a Notification Symbol.

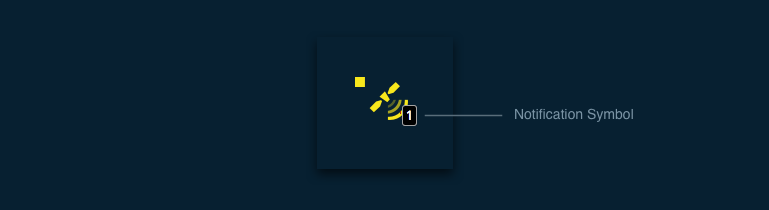

This Notification Symbol shows that five events related to a Satellite have occurred. You may hyperlink indicators to reveal a deeper view of relevant Notification information. You may also link to the general Log.

icons 011 notification symbol

icons 011 notification symbol

Labeling

An Icon may also include a Label and Sub-Label.

icons 012 labeling

icons 012 labeling

An Icon Label provides the name of the item being represented. An Icon Label should not change.

An Icon Sub-Label provides additional information to the user and may be dynamic. Use Sub-Labels only as needed to avoid unnecessary distraction.

Examples

icons do 1

icons do 1

Do: When used in a group, keep Icons and Symbols equally sized.

icons do 2

icons do 2

Do: Allow ample space between Icons and Symbols.

icons do 3

icons do 3

Do: In a horizontal layout, align horizontally based on the center of each Icon when height and width may vary.

icons do 4

icons do 4

Do: Use Icons and Symbols consistently across applications.

icons do 5

icons do 5

Do: Use standard Health and Status indication colors and Symbols.

icons do 6

icons do 6

Do: In a vertical layout, align vertically based on the center of each Icon when height and width vary.

×
